Stubbo Solar Farm

The Project

ACEN’s Stubbo Solar Farm is a 400 MW renewable energy facility located in Central West NSW. Once operational, it will generate enough clean electricity to power approximately 185,000 homes each year. A1 Earthworx supported both the civil and electrical scopes of the project, delivering large-scale earthworks, internal road construction, trenching, cable installation and specialised renewable energy infrastructure works.
Client
ACEN Australia
Location
Central West NSW
Services
Civil construction, Bulk earthworks, Road construction, Renewable energy infrastructure, Plant hire (wet and dry)

The Scope

  • 530,000 m³ of bulk earthworks
  • 32 km of internal road construction
  • Processing of 60,000 tonnes of sand

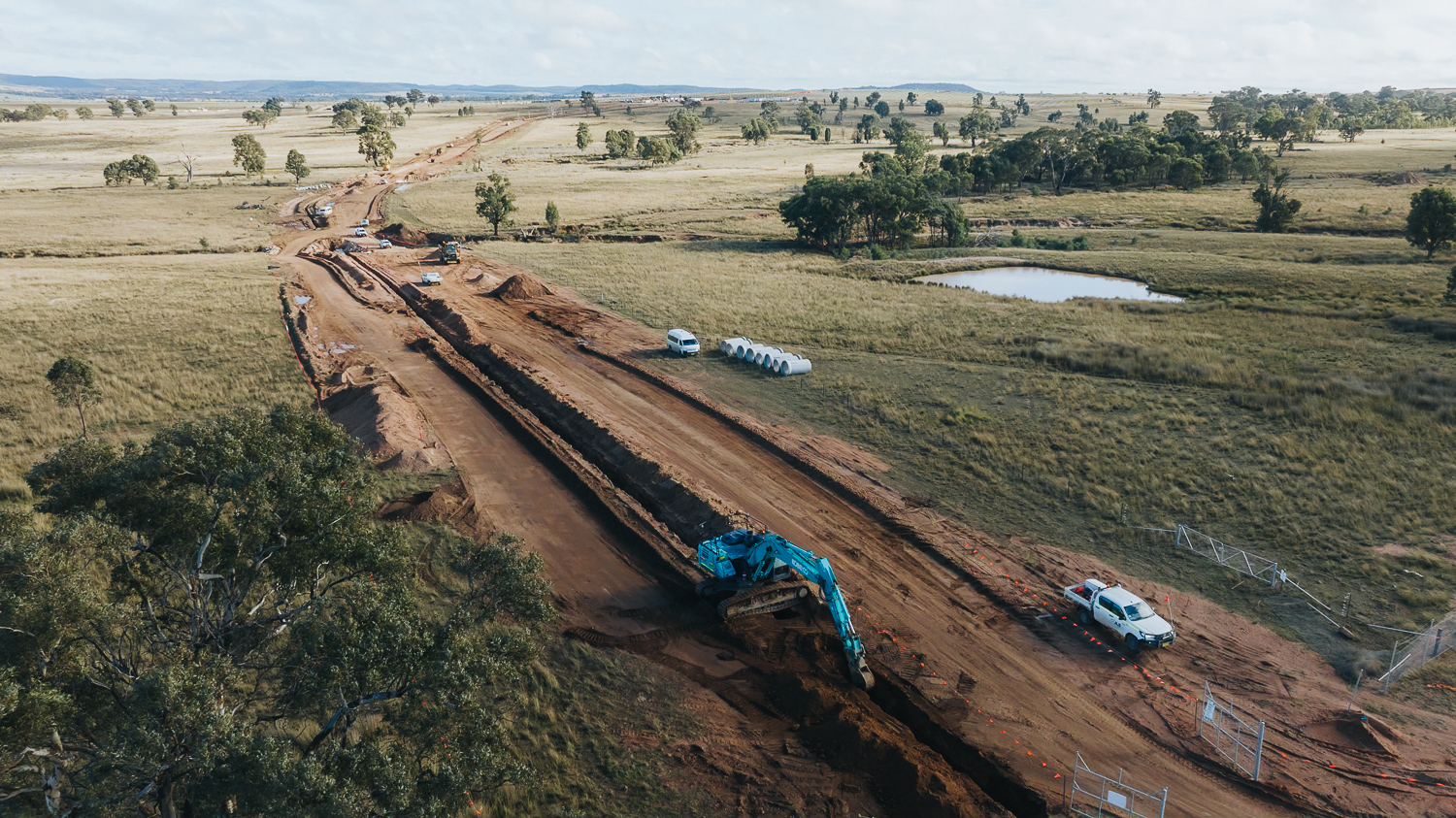

  • 38 km of MV trenching and excavation
  • 5 km of fibre, earthing and LV trenching
  • 49 km of DC trenching and excavation
  • Installation of:
    • 240 km of MV cable
    • 350 km of fibre, earthing and LV cable
    • 301 km of DC cable
    • 315 km of underground string cable
